Bedum

Landox flow booster

Total concept for optimum flow in aeration tanks

Aeration systems place high demands on flexibility, reliability, ease of maintenance and energy consumption. Our Landustrie propeller - type Landox - offers an efficient solution here. The Landox is an innovative propeller that clearly distinguishes itself from traditional systems.

Thanks to its low rpm, the Landox pushes wastewater in a gradual, continuous manner. This creates optimum plug flow over the entire water depth. The result? More efficient operation of the aeration elements and up to 10% higher oxygen transfer.

Features

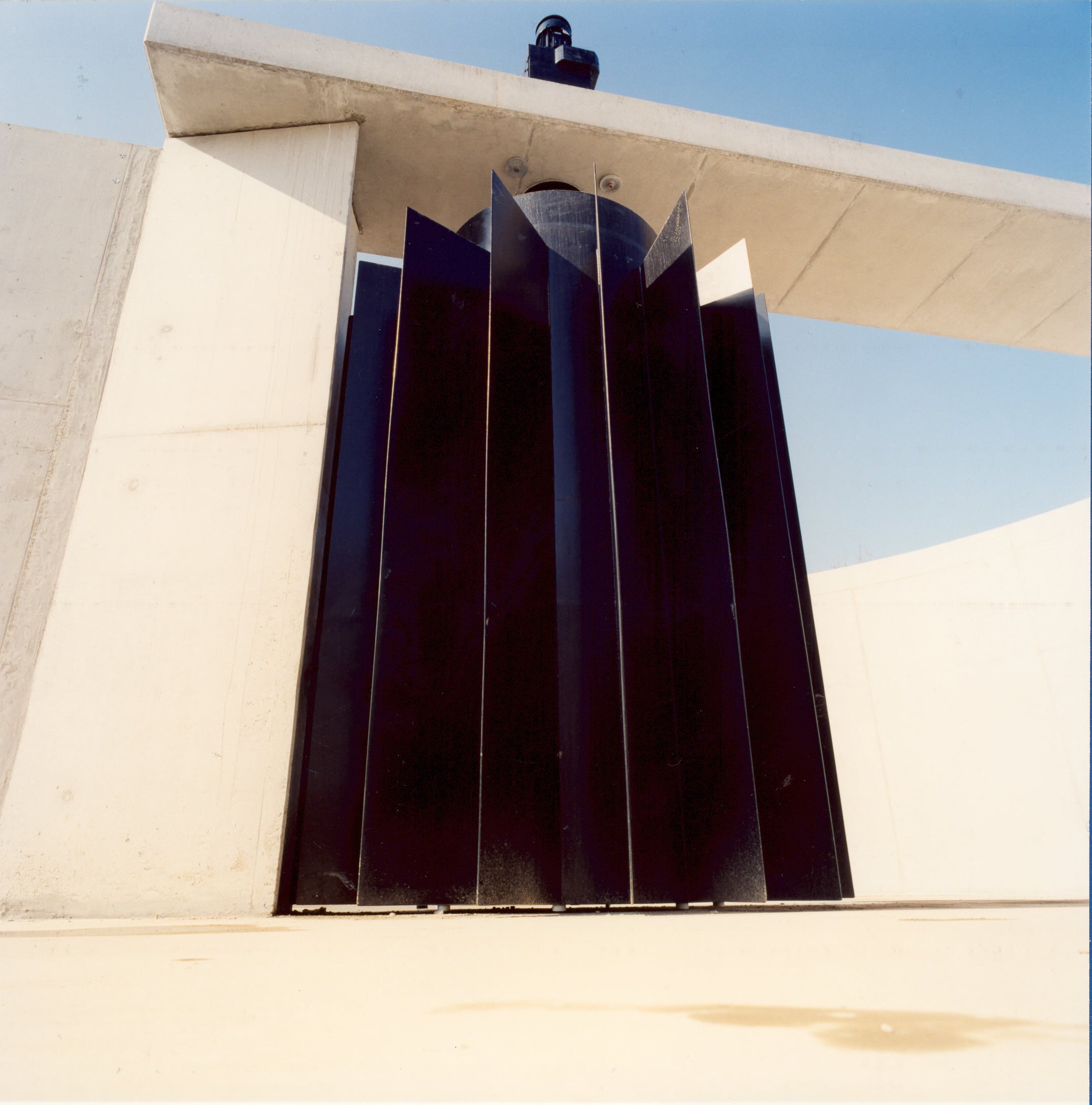

The Landox propulsor consists of a vertically mounted rotor with sixteen trailing blades. The entire drive system, including bearings, is located above the water surface. This makes the system maintenance-friendly and reliable.

The LANDOX moves the water through a controlled, slow rotary motion (5-25 rpm). This results in a stable prop flow (plug flow) over the entire depth of the tank, without unwanted speed fluctuations. This keeps air bubbles optimally distributed and maximises oxygen transfer.

Propellers are strategically placed in the bends of the aeration circuit, where flow resistance is highest. This is precisely where the propulsion energy can be used most efficiently. Due to this positioning and smart design, the energy required (W/m³) is significantly lower than for horizontal propellers, contributing to lower energy consumption and lower operating costs.

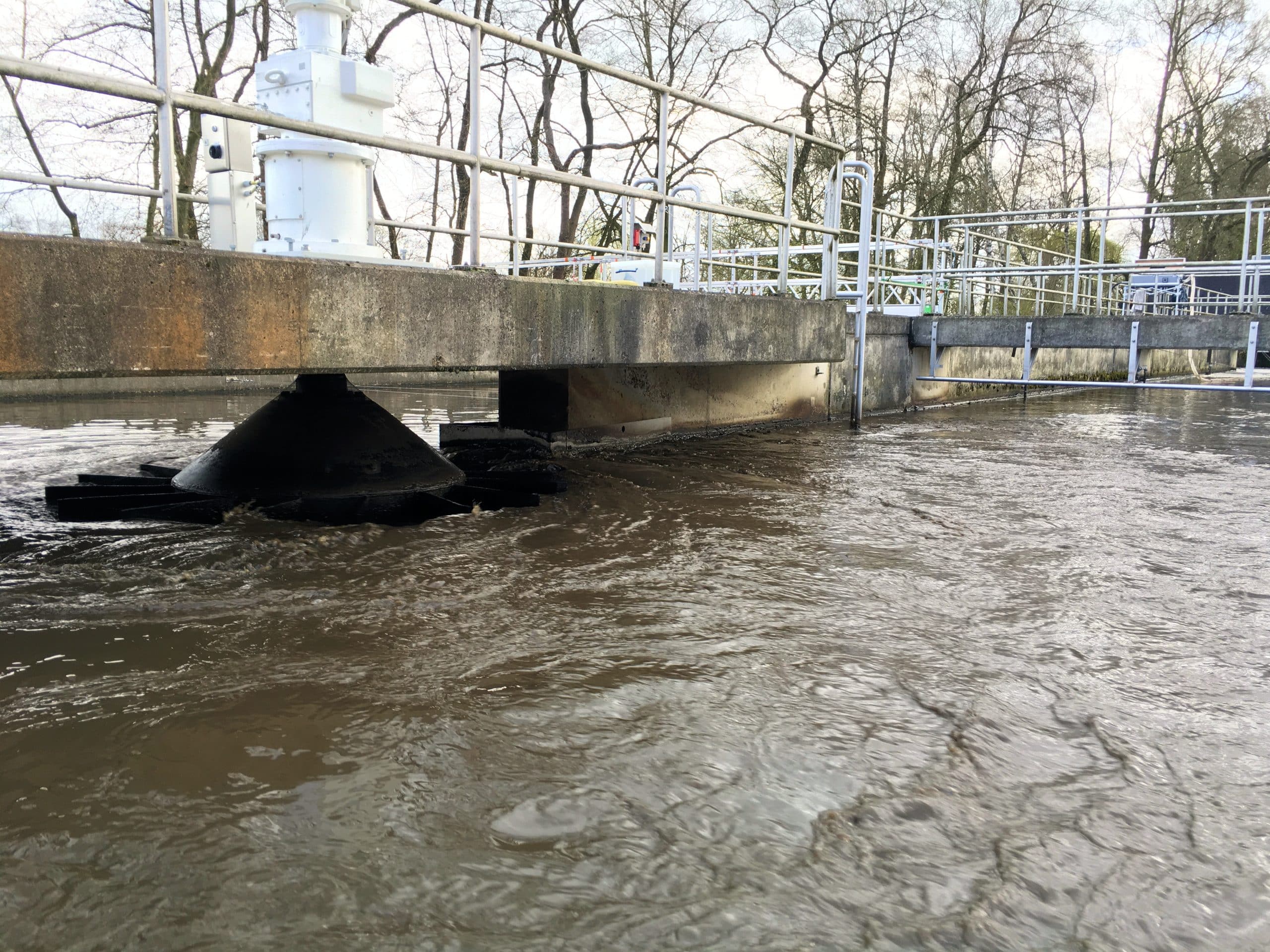

Glanerbrug1 Img 1305

Advantages

10% higher oxygen transfer
Low-maintenance design
No dead zones in the curves - no sedimentation

No coalescence of air bubbles
Energy-saving
Blockage-free - no spinning

Downloads

Landox propeller brochure

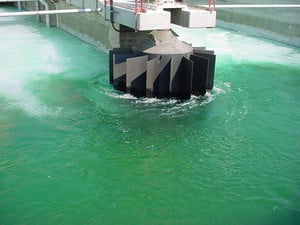

Landox Propeller
