- Mill Lane, Beaumaris (UK)
Automatic back raking machine prevents clogging during heavy rainfall
In the coastal area of Mill Lane in Beaumaris, located on the island of Anglesey in Wales (UK), we installed an automatic back raking screen cleaner as a solution to flooding. The installation prevents blockages in the drainage system during peak loads caused by heavy rainfall and increased sea levels. The system helps protect the area against flooding and is in line with the increasing demand for robust climate adaptation solutions.
The effects of climate change - such as extreme rainfall and rising sea levels - are creating new demands on water infrastructure worldwide. This installation in Anglesey is a good example of how local authorities are betting on preventive measures to reduce damage and nuisance.
First automatic back raking screen cleaner in Wales
Location:
Anglesey Wales
Client:
Aquatic Control Engineering
Market:
Flood management
Year of completion:
2019
What we delivered
For this project in Wales, Noardling supplied a fully automatic back raking screen cleaner with associated controls. The chain cleaner was installed at a crucial point in the local drainage system, where debris, branches and flotsam pose a risk to flow. By removing the debris automatically and continuously, the risk of blockages is greatly reduced.
The screen cleaner works on the principle of a conveyor belt: the collected dirt is transported upwards from the bottom and discharged at the top to a collection platform. The grab then returns empty.
The screen cleaner starts automatically when the water level on the inflow side rises compared to the outflow side. This level difference occurs when debris accumulates, causing a kind of dam effect. Once the accumulated material is removed and the water level normalises, the system automatically switches itself off again.
Why this solution?
- Automatic operation in case of level difference
- Reliable removal of dirt
- Low-maintenance
- Compact design
- Contributes to climate adaptation
- Suitable for fluctuating flow levels
Technical details
Type
Landy
Dimensions
1800×1700 mm
Bar distance
85 mm
Water inlet width
3000 mm
Water depth
650 mm min.
To meet the requirements, we proposed the Landustrie back raking screen cleaner. Easy to maintain, a compact design and fully automatic.
Project in pictures
From placement to final result - a compact project with great impact.

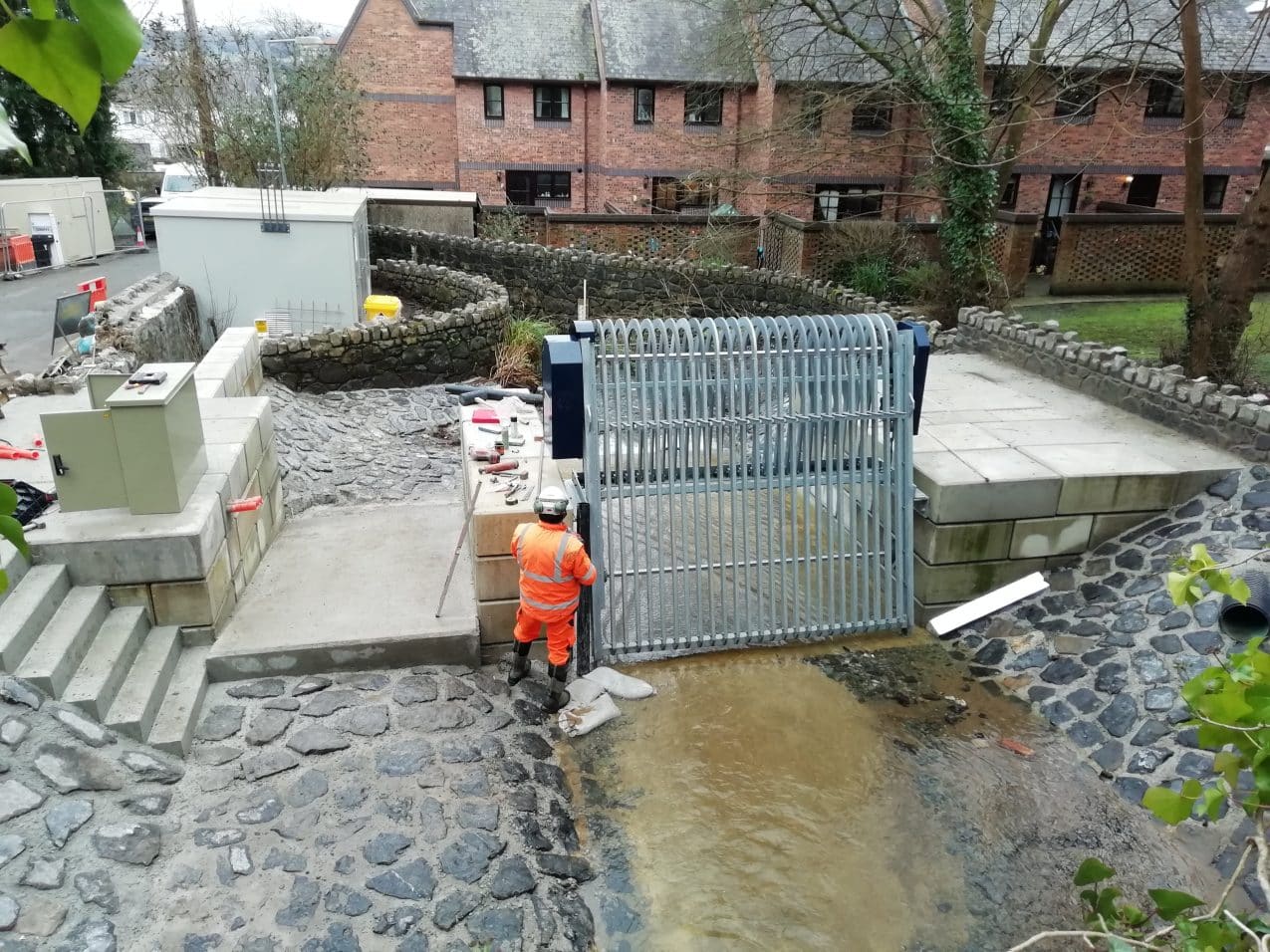

Assembling the screen cleaner

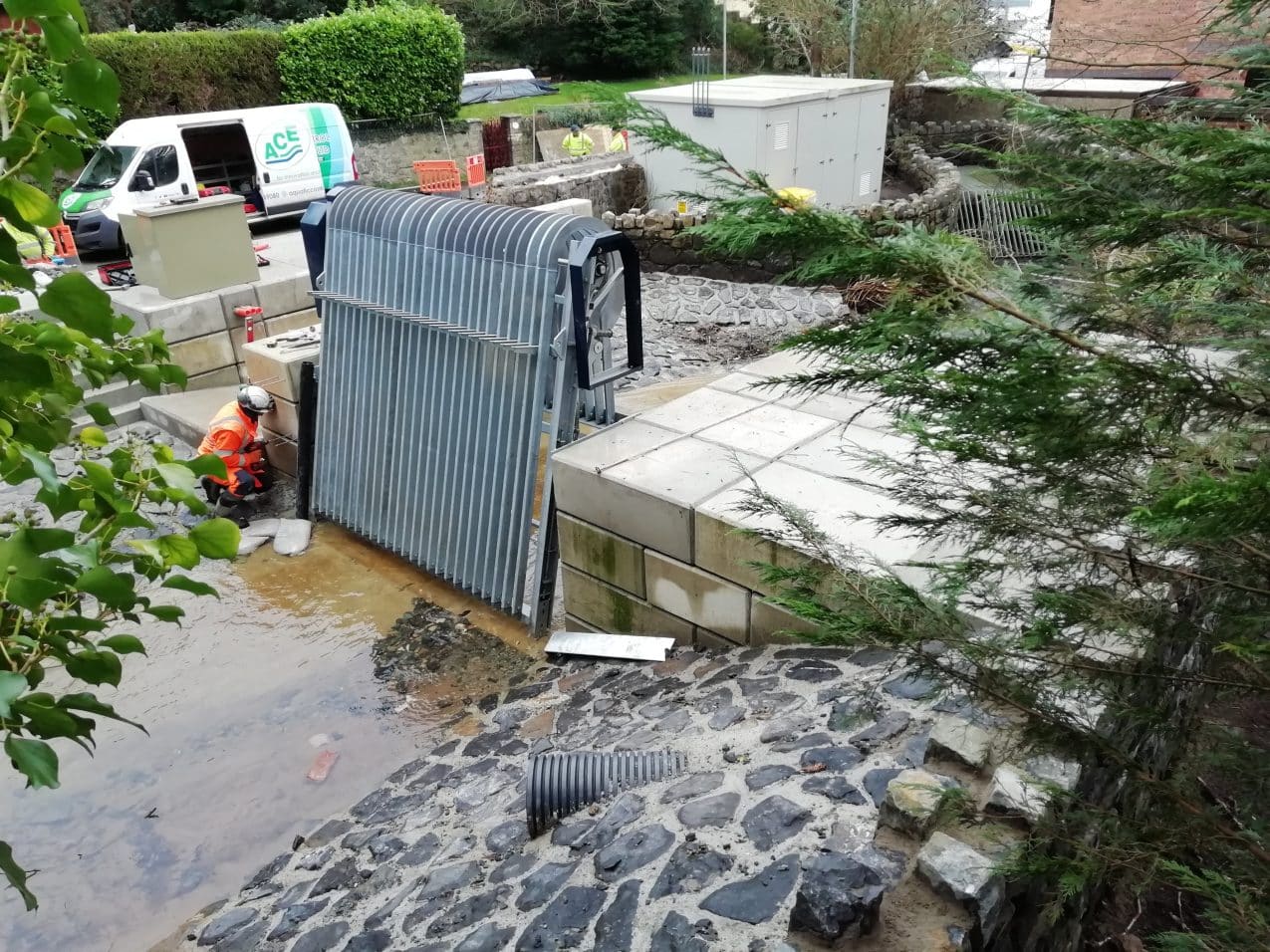

Assembly is carried out by our local partner ACE

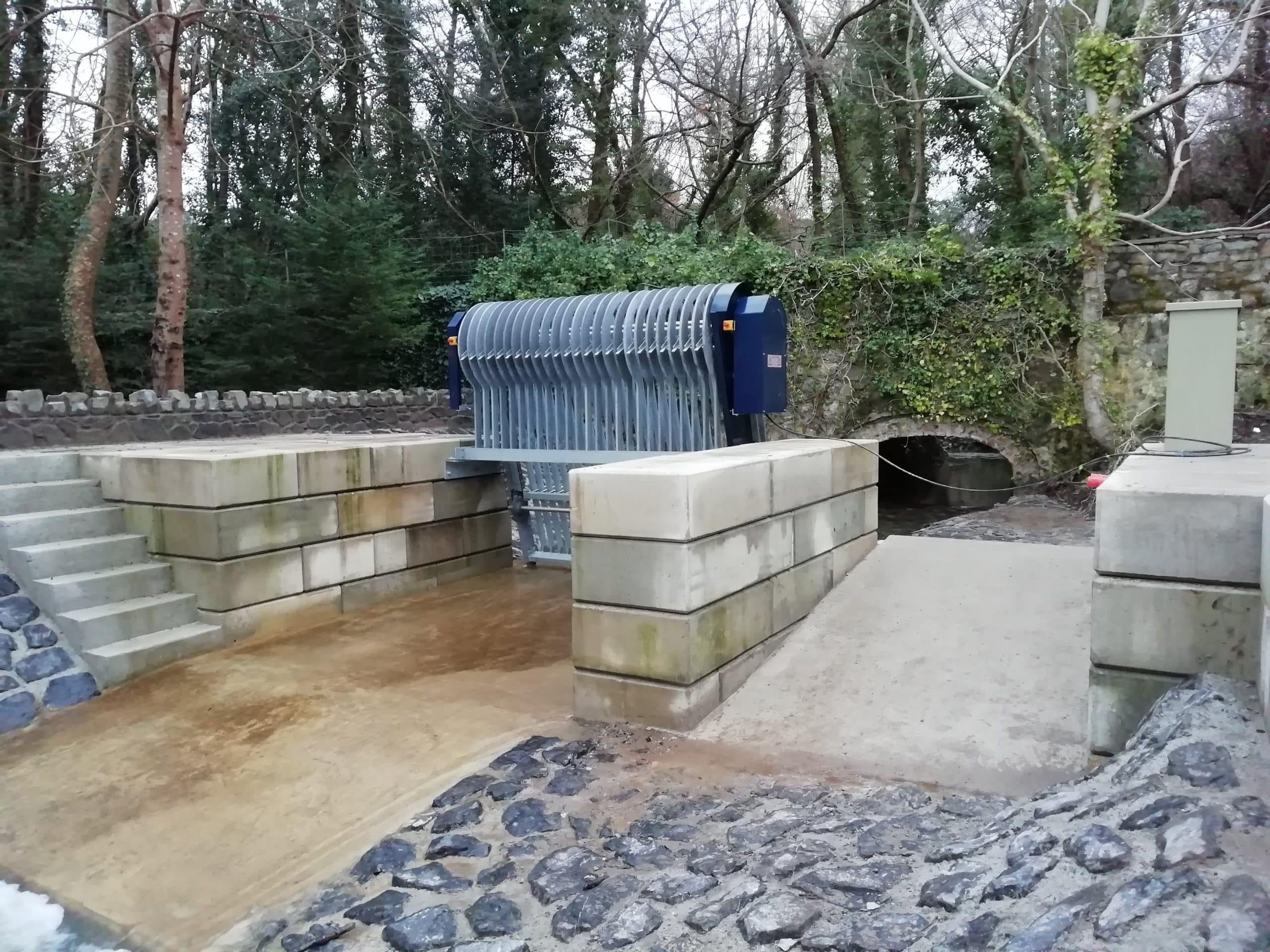

The installation is ready for use and can be tested
