Scaling up WWTP in desert
In Jebel Ali district, located in the southern part of Dubai, the existing wastewater treatment plant has been significantly expanded. Daily capacity has been increased from 300,000 to a whopping 675,000 m³ of sewage per day. This upscaling was necessary due to the realisation of a new urban district for over 1 million inhabitants, the construction of the new airport and the organisation of the World Expo 2020.
Optimal aeration concept - suitable for extreme conditions
Location:
Dubai (UAE)
Client:
Joint venture Besix-Larsen&Toubro
Market:
Municipal wastewater treatment
Year of completion:
2018
What we delivered
For this project in Dubai, we supplied 48 Landustrie surface aerators of the Landy-7 type, including the corresponding drives and controls. All aerators were assembled on site under the supervision of our own assembly team.

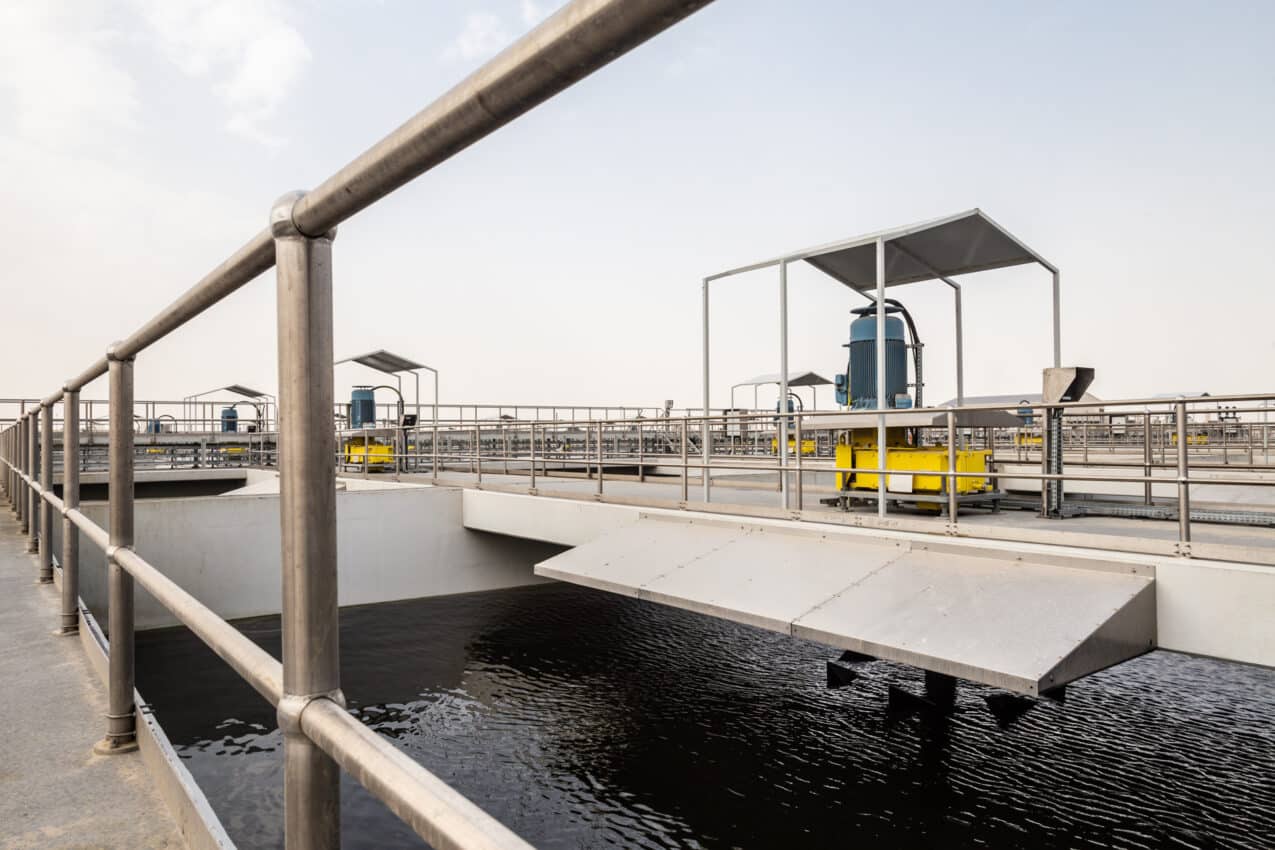

The sewage treatment plant is located in an open desert area where summer temperatures can exceed 50 °C. To protect the drive units from this extreme heat, they are fitted with a specially designed sunshade.
Prior to delivery, the aerators were extensively tested in our own full-scale test tank in Sneek, in the presence of the customer. The focus here was on efficiency and oxygenation capacity.
Why this solution?
- Optimal aeration configuration
- Successful test results
- High oxygenation capacity
- Saving on energy consumption
- Blockage-free surface aerator - non-clogging
- Low-maintenance
Technical details
Type
Landy-7
Diameter
2400 mm
Speed
52.7 rpm
Power
110 kW
Extra
sun hood

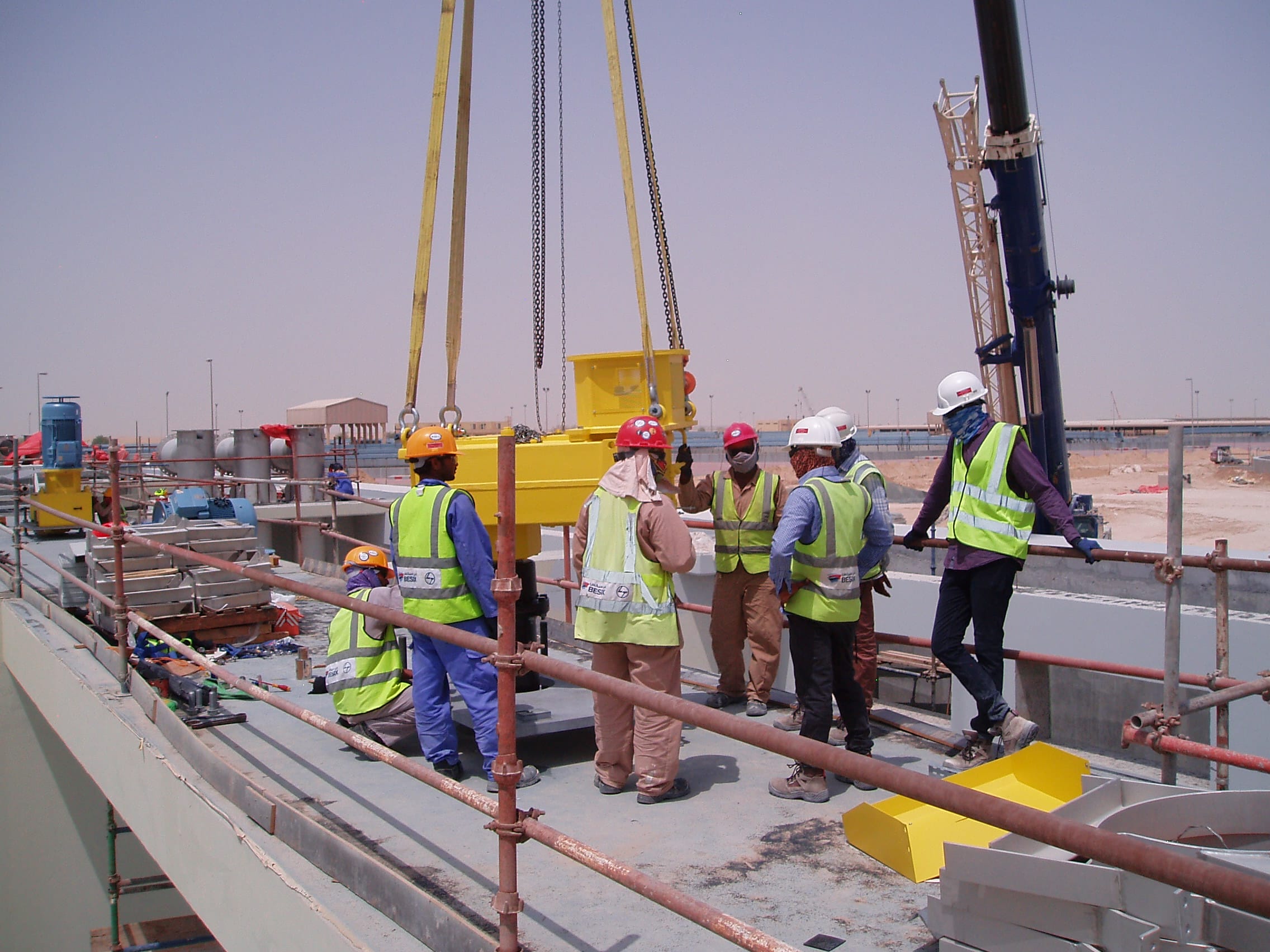

In extreme heat, our own mechanics supervised the assembly and commissioning of the surface aerators.
Project in pictures
From installation to commissioning - a high-impact project.

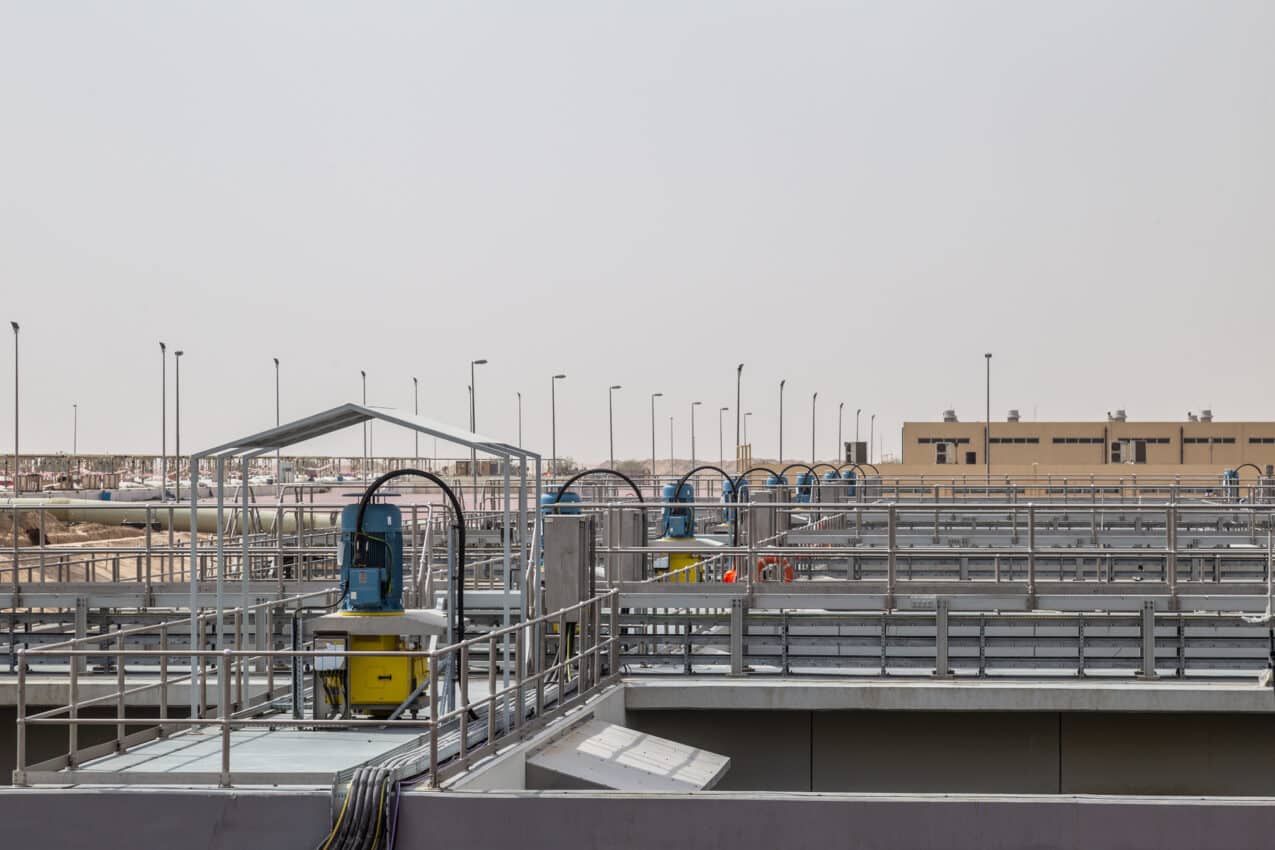

Sewage treatment plant expansion in view.
The aerators were put into operation along with the local team.

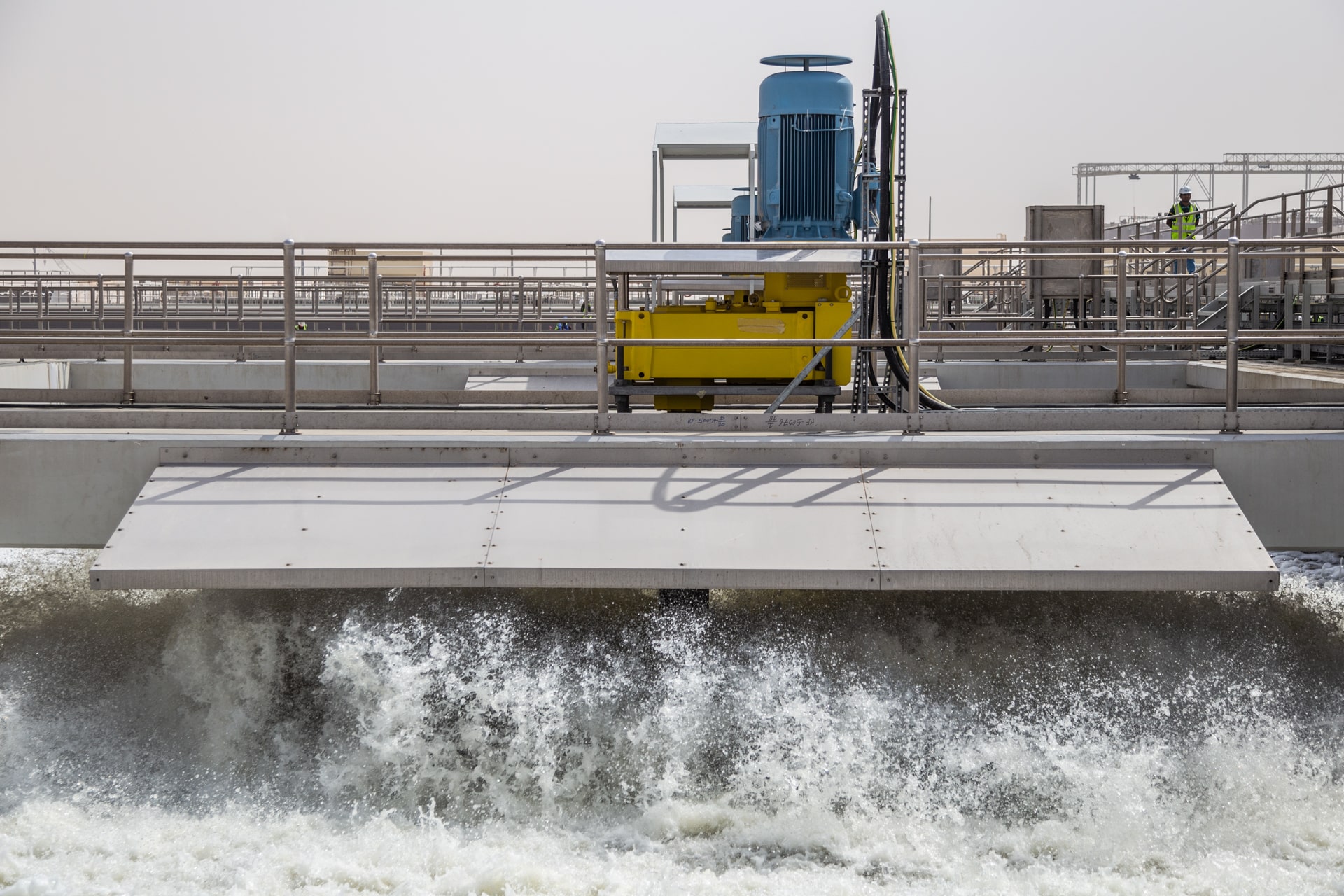

Each aerator is fitted with a splash screen.
